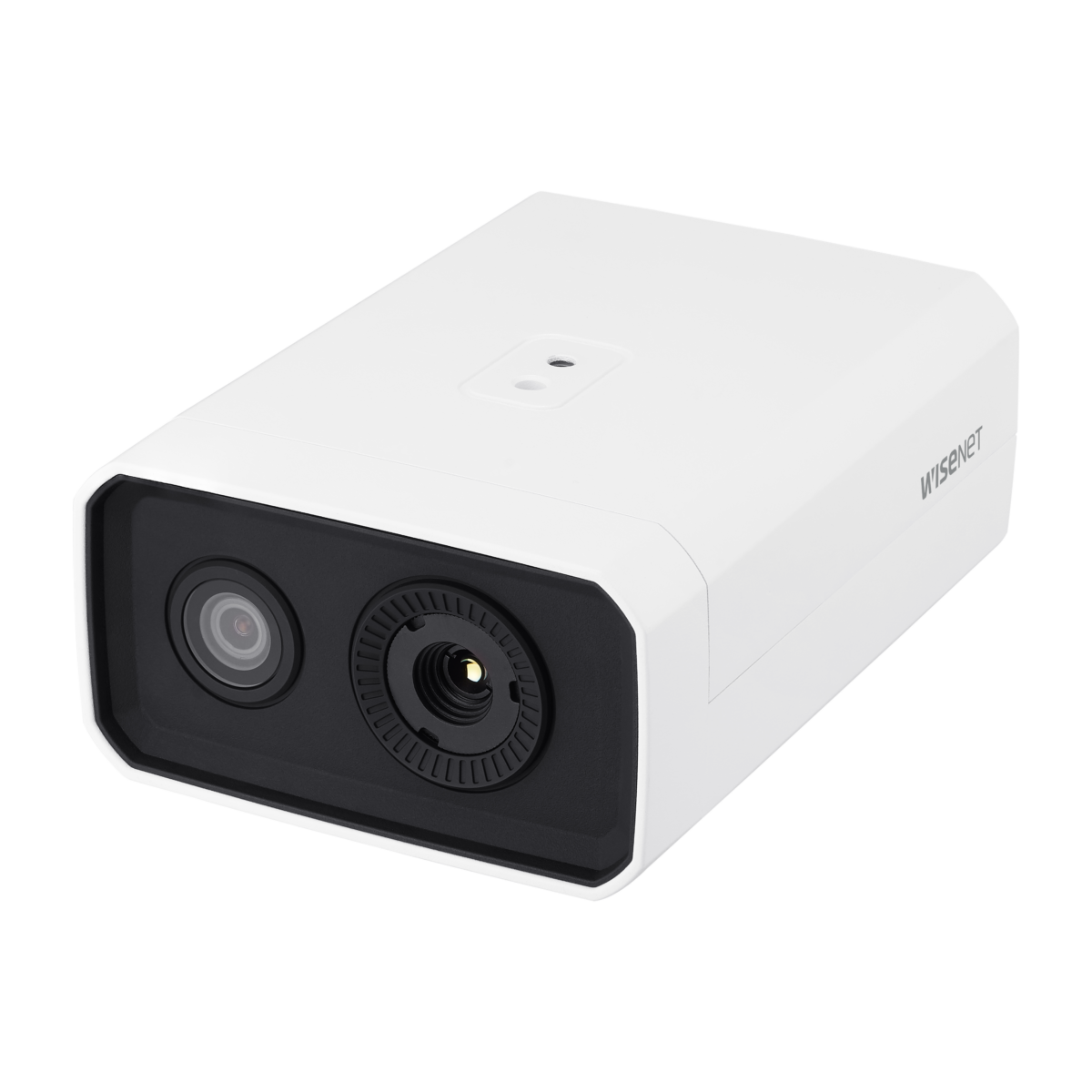

Caméra thermique TNM-3620TDY est utilisée pour surveiller les températures corporelles à distance, notamment pour la détection de la fièvre, en affichant des images thermiques des personnes
Key Features
| Video | ||
|---|---|---|
| Imaging Device | Uncooled micro bolometer (320×240) | 1/2.8″ 2MP CMOS |
| Resolution | 1280×960, 640×480, 320×240 | 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
|
| NETD | ＜60mK | |
| Pixel size | 12㎛ | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation USB : Micro USB Type B, 1280×720 for installation |
|
| Lens | ||
| Focal Length (Zoom Ratio) | 4.7mm fixed focal | 4mm fixed focal |
| Max. Aperture Ratio | F1.0 | F1.6 |
| Angular Field of View | H: 50.0°, V: 36.4°, D: 65.3° | H: 87.6, V: 46.4°, D: 104.5° |
| Min. Object Distance | 1m(3.28ft) | |
| Focus Control | Fixed | |
| Operational | ||
| Camera Title | Displayed up to 85 characters | |
| Digital Image Stabilization | Support(built-in gyro sensor) | |
| Motion Detection | 8ea, 8point polygonal zones | |
| Privacy Masking | 32ea, polygonal zones – Color: Grey/Green/Red/Blue/Black/White – Mosaic |
|
| Video Rotation | Flip, Mirror | |
| Analytics | EBT mode : Temperature detection, Blackbody error Normal mode : Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line, Audio detection, Temperature detection *EBT : Estimated Body Temperature |
|
| Alarm I/O | Input 1ea / Output 2ea | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover (normal mode only) Audio playback Beep alarm (EBT mode only) |
|
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
|
| Audio Out | Line out, Max.output level: 1Vrms | |
| Color Palettes | EBT Mode (thermal face detection) : Whitehot EBT (visible face detection) & Normal mode : Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom |
|
| Radiometry | ||
| Temperature Detect Range | Estimated body temperature mode : 30~45°C(86°F~113°F) Normal mode : -20~+130°C(-4°F~+266°F) |
|
| Temperature Accuracy | Estimated body temperature mode : ±0.5°C(±0.3°C with Blackbody) Normal mode : ±5°C(≤100°C), ±20%(>100°C) |
|
| Temperature Detection | 3ea rectanguler (normal mode) | |
| Additional | Hybrid palettes (normal mode), Spot temperature reading (normal mode) |
|
| Network | ||
| Ethernet | Metal shielded RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
|
| Smart Codec | WiseStreamⅡ | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
|
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 6 profiles) |
|
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP | |
| Security | HTTPS(SSL) login authentication Digest login authentication IP address filtering User access log 802.1X authentication(EAP-TLS, EAP-LEAP) Device certificate(Hanwha Techwin Root CA) |
|
| Application Programming Interface | ONVIF Profile S/T SUNAPI(HTTP API) |
|
| General | ||
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB | |
| Memory | 4608MB RAM, 512MB Flash | |
| Environmental & Electrical | ||
| Operating Temperature / Humidity | EBT mode : +10°C~+35°C(+50°F~+95°F) / Less than 95% RH Normal mode : -10°C~+55°C(+14°F~+131°F) / Less than 95% RH |
|
| Storage Temperature / Humidity | -30°C~+60°C(-22°F~+140°F) / Less than 95% RH | |
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC | |
| Power Consumption | PoE+: Max. 17.0W, typical 12.5W 12VDC: Max. 14.5W, typical 11.0W |
|
| Mechanical | ||
| Color / Material | White / Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions / Weight | 135(W)x75(H)x188.5(D)mm, (5.31×2.95×7.42″), 1.7kg(3.77lb) | |
